Brinks Trusted T7

Global equipment tracking

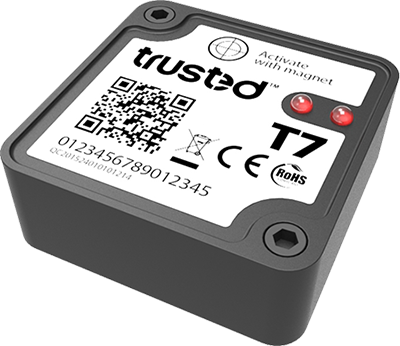

Brinks Trusted T7

Brinks Trusted T7 is a completely new tracking device for long term tracking of assets all over the world. New technology and clever design have made this gem a reality with fea- tures including very long battery life time and an extremly robust enclosure.

Brinks Trusted T7 is a truley unique product with a battery life time of +3 years based on 1 position/day combined with an operating temperature range from -30C to +80C in a molded super rugged design. T7 is made especially for tracking tools and containers but its scope is much wider and includes all sorts of assets that have no power and needs tracking for a long period.

Brinks Trusted T7 uses GPS to acquire a position and sends its data to a server via GSM. Reports are generated in fixed intervals – e.g. 2 times each day and/or in shorter intervals if in motion.

A build-in radio beacon can be activated for close range finding if needed.

Dealers

Enclosure

Brinks Trusted T7 is a molded construction intended for use in all sorts of rough environments. The enclosure is IP69k rated.

Fastening onto the asset is done with the 3M adhesive and/or with 2 4mm cylinder head screws.

Radio beacon

For close range finding the build-in UHF radio beacon can be activated. Using a suitable radio receiver and antenna it is possible to track down the T7 from a distance of 1-10km depending on geography.

Sensors

Brinks Trusted T7 has a build-in sensors for GPS, MOTION, TILT, TEMPERATURE, LIGHT, G-CHOCK. In addition the T7 can connect to up to 8 wireless sensors / RFID tag to further enhance the sensor range. A wireless sensor could be used to e.g. sense relative humidity.

Certificates

VbV-SCM keurmerk SCM TV-01

Specifications

Dimensions65x65x24mm
Weight100g
IP ratingIP69k
EnclosurePA6 w. glass + epoxy
Battery life timeTypical 3 years @ 1pos/day
Battery typePrimary Lithium, 6Ah
Operating Temperature range-30C to +80C
Storage Temperature range-40C to +90C
Positions technologyGPS and GSM cell ID
GSM technologyGPRS/SMS Quad band
SensorsMOTION, TILT, TEMPERATURE, LIGHT, G-SHOCK, Wireless
Radio Beacon433MHz band, up to 100mW
GPS antennaBuilt-in
GSM antennaBuilt-in
Radio antennaBuilt-in
SIMBuilt-in, subscription required
Software:Locate Global
